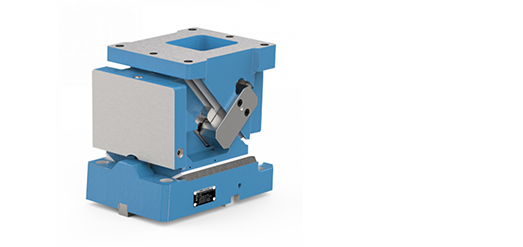

PowerMax® PMU -
Die mountain cam unit
The bottom slider range is characterised by its high performance and flexibility.
PRODUCT FEATURES
- Cam widhts 65 - 1200 mm
- Working angle 0° - 25°
- Self-centring, prismatic guide system
- Very high pressing forces
- Quality class > 750.000
- Average service life: < 2 Mio.
- Guaranteed service life: 1 Mio.
- Active retraction for previously unrivalled retraction forces of up to ~10% of the pressing force
- Reset with gas spring in accordance with VDI 3003
- Sliding elements made of SNS sintered metal
- Sliding partner for SNS sintered metal sliding element, hardened steel
- Additional machining according to customer data on the work surface for fast throughput times in toolmaking
- Base body made of material EN-GJS-600-3 (GGG 60)
- 24-hour service in the event of a crash
MORE INFORMATION
Product features - Die mountain cam unit PMU
Operating Instructions - Die mountain cam unit PMU 0065 - 0260
Operating Instructions - Die mountain cam unit stehende PMU 0330 - 1200

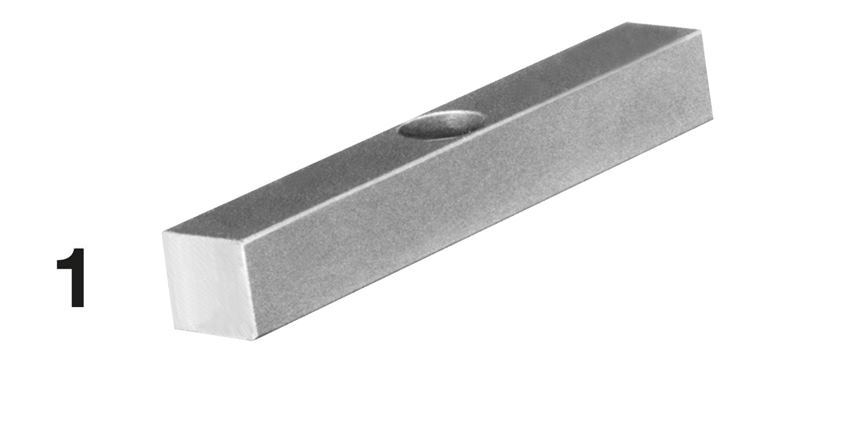

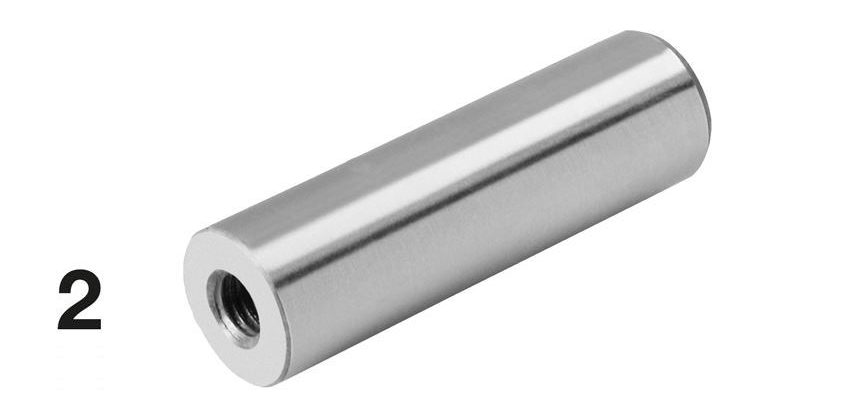

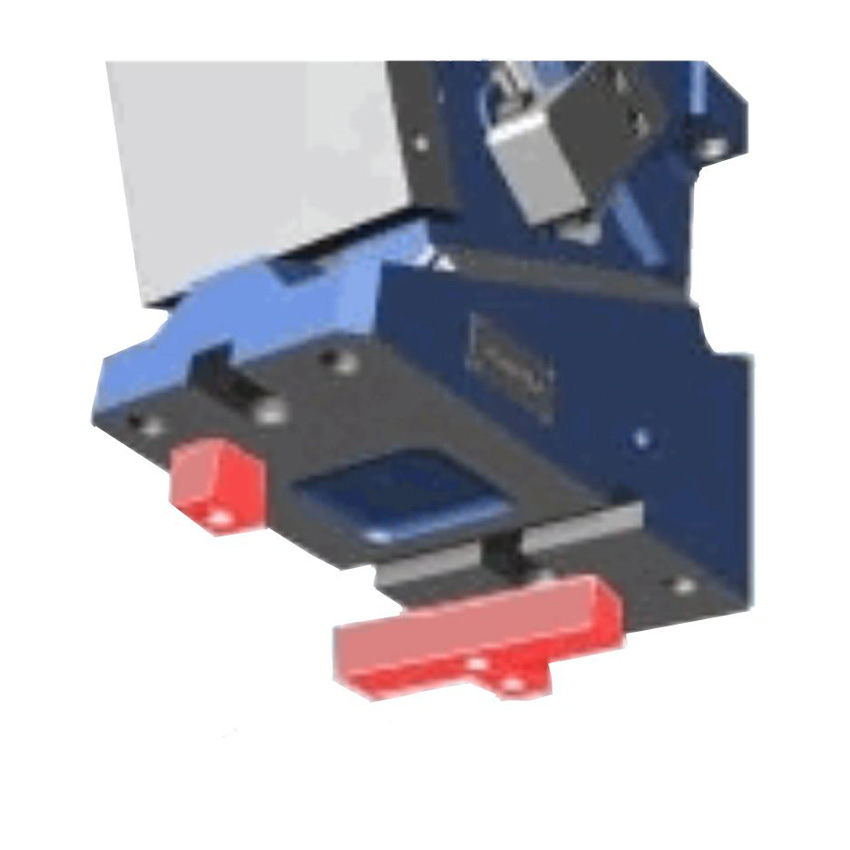

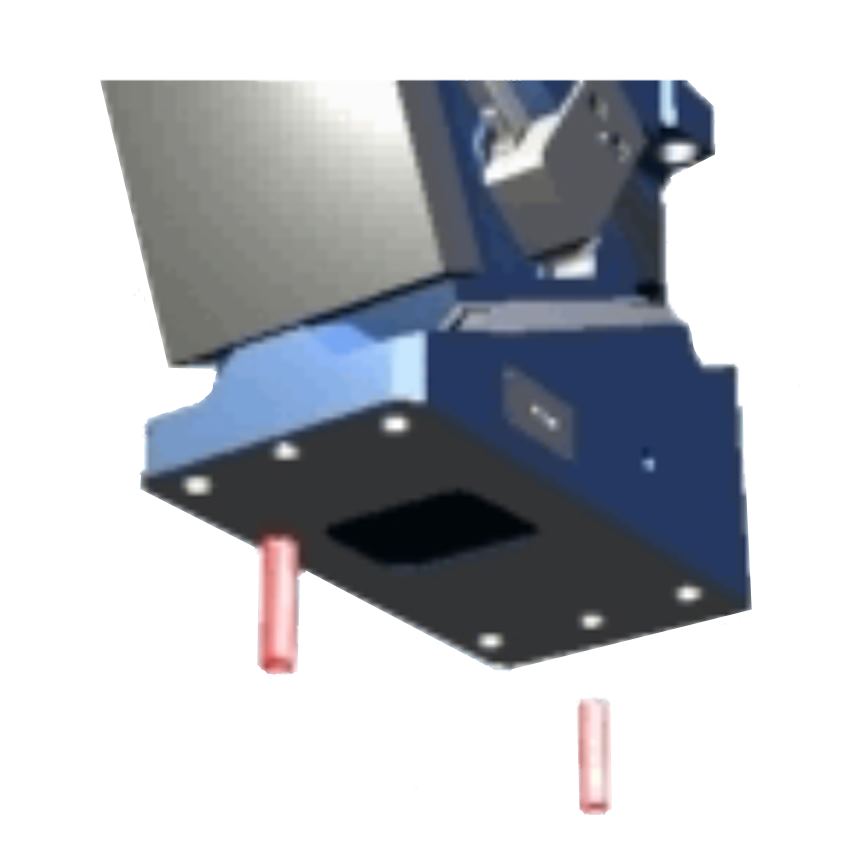

Centring variants
Two centring variants are available as standard
