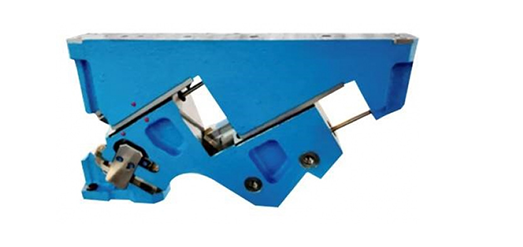

PowerMax® PMOM -
Multiguide Cam Unit
The PowerMax Multiguide is a special cam unit that can bridge the waste chute and enables machining inside the tool while still providing a guide to the upper part of the tool. This makes it possible to punch a hole, for example, even with a large distance to the driver.
Thanks to its offset double guide, the lever arm for lateral forces acting on the screwed-on tool is significantly reduced and absorbed in the cam unit. The stepped guide drastically reduces the overall height of this design. The low overall height of the PMOM is very beneficial for the use of this cam unit, as adjustments can be made individually.
The proven advantages of Strack cam units, such as compactness and strength, also come into their own with this variant. This paves the way for individual applications.
PRODUCT FEATURES
- Cam widths 65 - 1200 mm
- Working angles 0° - 75°
- Self-centering, prismatic guide system
- Very high pressing forces
- Quality class < 750.000
- Average service life: < 2 Mio.
- Guaranteed service life: 1 Mio.
