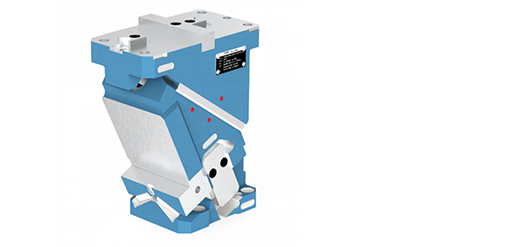

PowerMax® PMOKL -
aerial cam unit compact light
The PMOKL was specially designed for confined spaces and is up to 30% shorter than the PowerMax®-series.
PRODUCT FEATURES
- Cam widths 65 - 460 mm
- Working angle 0° - 75°
- Self-centring, prismatic guide system
- Very high pressing forces
- Quality class < 750.000
- Average service life: < 1 Mio.
- Guaranteed service life: 500.000
- Forced retraction
- Optionally available sensors enable continuous position monitoring for greater safety in production
- Reset with gas spring in accordance with VDI 3003
- Sliding elements made of SNS sintered metal
- Sliding partner for SNS sintered metal sliding element, EN-GJS-600-3 unhardened
- More flexible positioning thanks to 4 different centring variants included in the scope of delivery
- Improved handling
- Additional machining according to customer data on the work surface for fast throughput times in toolmaking
- Base body made of material EN-GJS-600-3 (GGG 60)
- 24-hour service in the event of a crash
MORE INFORMATIONEN
Product features - aerial cam unit compact light PMOKL
Operating instructions - aerial cam unit compact light PMOKL
Centring variants
In the current version V04, we offer four different centring options to increase flexibility.
All variants are automatically included on delivery and can be freely selected.
