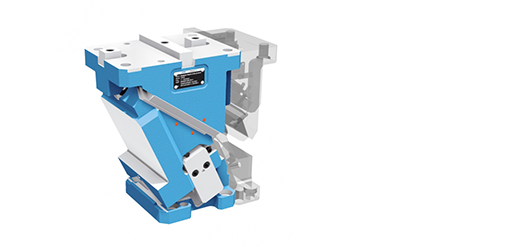

PowerMax® PMOK -
aerial cam unit compact
Der PMOK was specifically designed for tight spaces and is up to 30% shorter than the PowerMax®- PMO series.
The PMOK cam program is caracterized by its high performance, precision, and durability in a very compact design. All guide elements and attachements are available in high precision in stock and can be exchanged without modification if needed.
PRODUCT FEATURES
- Cam widhts 65 - 460 mm
- Working Angles 0° - 75°
- Self-centring, prismatic guide system
- Very high pressing forces
- Quality Class > 750.000
- Average service life: < 2 Mio.
- Guaranteed service life: 1 Mio.
- Active retraction for previously unrivalled retraction forces of up to ~10% of the pressing force
- Optionally available sensors enable continuous position monitoring for greater safety in production
- Reset with gas spring according to VDI 3003
- Sliding elements made of SNS sintered metal
- Sliding partner for SNS sintered metal sliding element, hardened steel
- More flexible positioning thanks to 4 different centring variants included in the scope of delivery
- Improved Handling
- Additional machining according to customer data on the work surface for fast throughput times in toolmaking
- Base body made of material EN-GJS-600-3 (GGG 60)
- 24-hour service in case of a crash
MORE INFORMATION
Produkt data - aerial cam units compact PMOK
Operating Instructions - aerial cam unit compact PMOK
Productvideo PMOK (YouTube Channel)

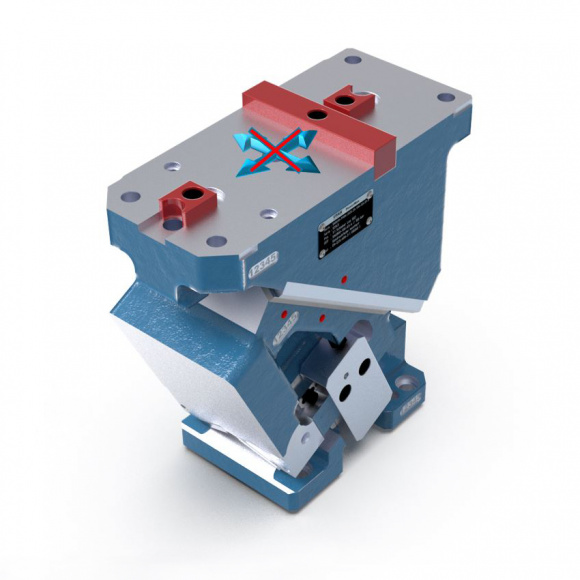

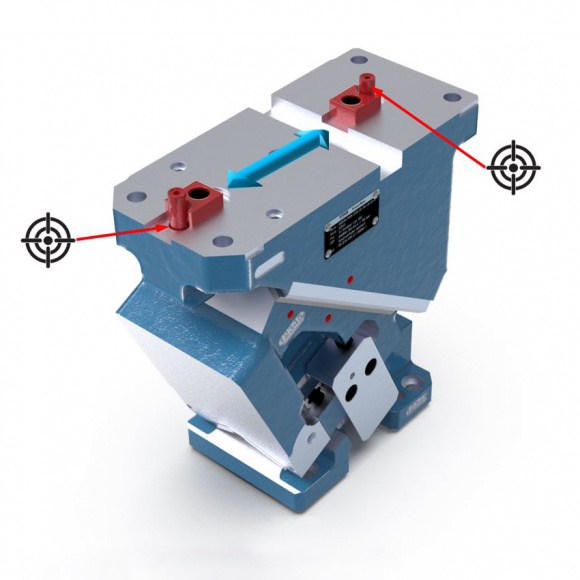

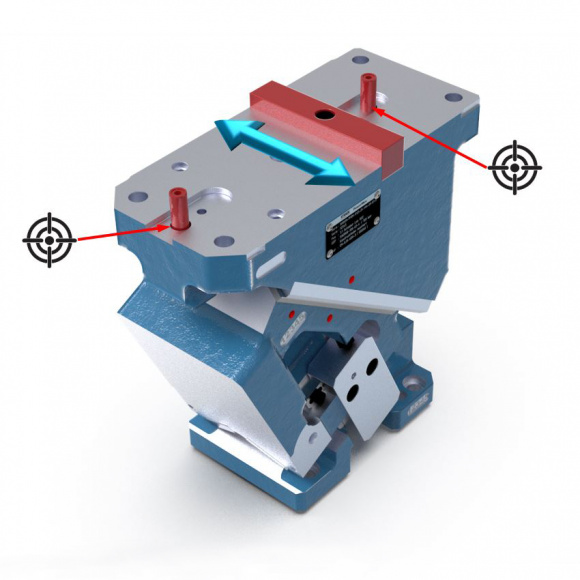

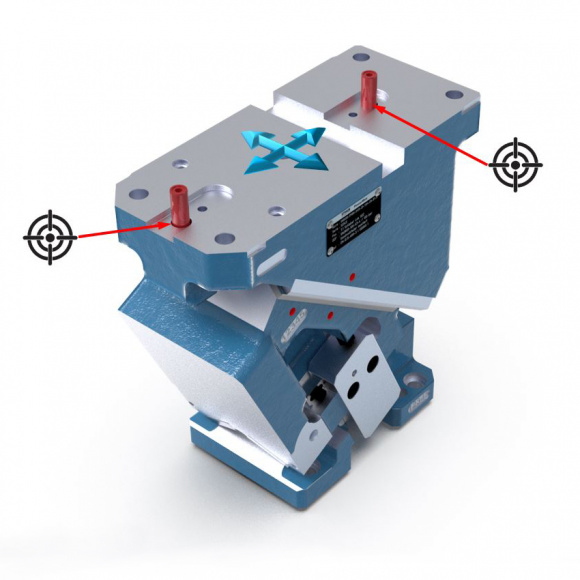

Centring variants
In the current version V04, we offer four different centring options to increase flexibility. All variants are automatically included on delivery and can be freely selected.
